Tools & Accessories
Chapter 8 — Complete accessories checklist, installation tools, and consumables for lightning protection system deployment
A successful lightning protection system installation depends not only on the correct selection of primary protection components but also on having the complete set of installation accessories, consumables, and tools available on-site. Missing a single accessory — such as the correct compression lug size, the anti-oxidant compound for copper-aluminum connections, or the torque wrench for verifying bolt torque — can compromise the quality and reliability of the completed installation. This chapter provides a comprehensive accessories checklist, organized by category, to ensure that all necessary items are procured and available before installation begins.
8.1 Complete Accessories Checklist
The accessories checklist image below presents all required installation accessories in a single organized reference, with item names and indicative quantities for a typical small-to-medium communication site installation. Quantities should be adjusted based on the specific site requirements determined during the design phase.

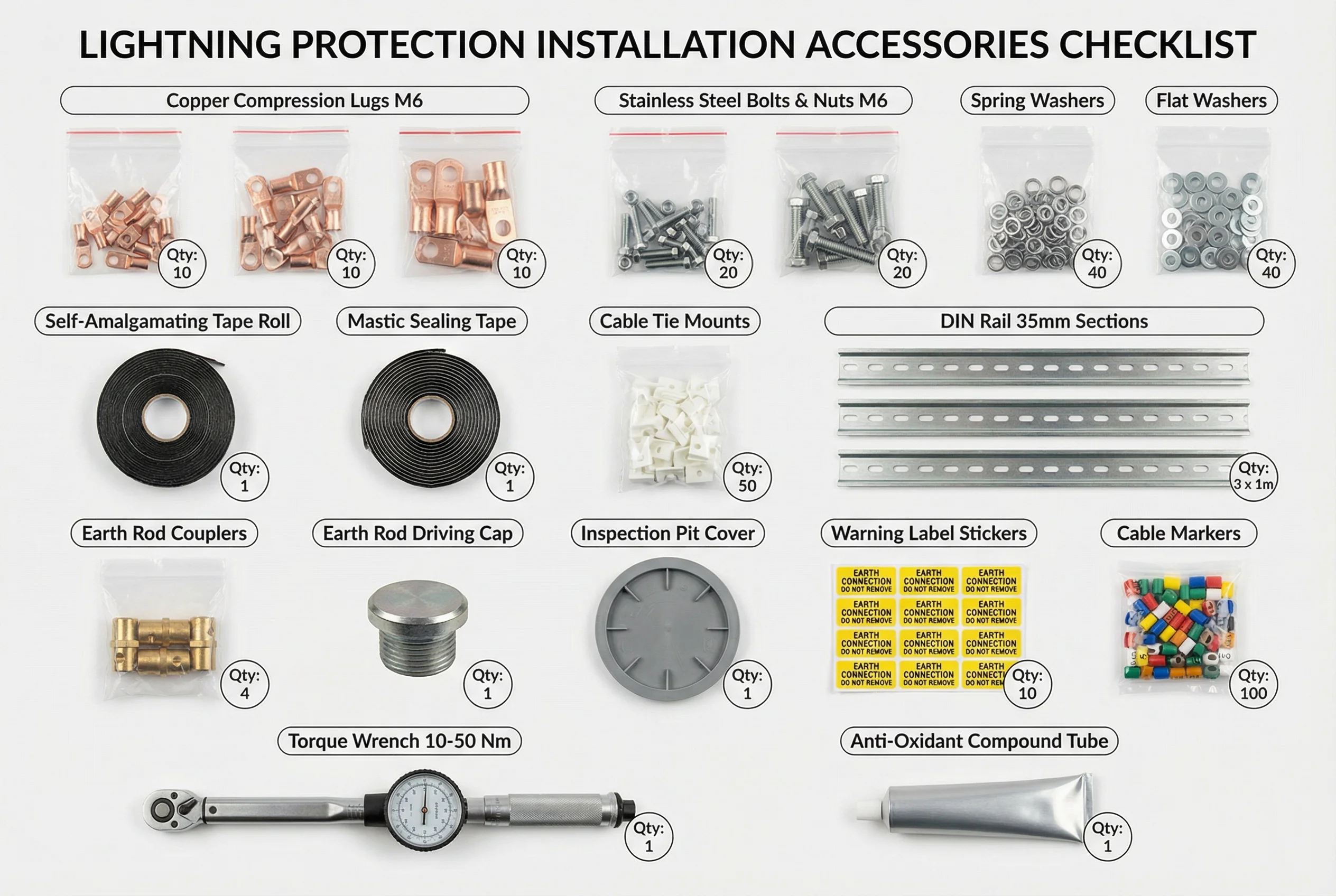

Figure 8.1: Complete accessories checklist — copper compression lugs, fasteners, sealing materials, DIN rail sections, earth rod accessories, warning labels, and installation tools
8.2 Fasteners and Connectors
All fasteners used in lightning protection installations must be made from corrosion-resistant materials to ensure long-term reliability. Stainless steel (A2 or A4 grade) is the preferred material for bolts, nuts, and washers used in outdoor or high-humidity environments. The table below specifies the fastener requirements for different connection types in a typical installation.
| Connection Type | Fastener Specification | Torque Requirement | Quantity (Typical Site) |
|---|---|---|---|
| MEB to wall bracket | M8 × 40 mm SS hex bolt + spring washer + flat washer | 15–20 Nm | 4–8 sets |
| Bonding conductor to MEB | M6 × 20 mm SS hex bolt + spring washer + flat washer | 8–12 Nm | 10–20 sets |
| Earth rod clamp | M8 SS hex bolt + nut (included with clamp) | 15–20 Nm | 4–8 sets |
| DIN rail to panel | M5 × 12 mm SS pan head screw | 3–5 Nm | 10–20 sets |
| Cable tray bonding | M6 × 16 mm SS hex bolt + spring washer | 8–12 Nm | 10–20 sets |
| Rack bonding strap | M6 × 20 mm SS hex bolt + spring washer + flat washer | 8–12 Nm | 4–8 sets per rack |
8.3 Sealing and Weatherproofing Materials
All outdoor connections in the lightning protection system must be properly weatherproofed to prevent moisture ingress, which is the primary cause of corrosion-related protection degradation. The combination of mastic sealing tape (applied first) and self-amalgamating tape (applied over the mastic) provides a durable, moisture-proof seal for all outdoor connections including earth rod clamps, bonding conductor terminations, and coax grounding kit connections.
| Material | Application Method | Coverage | Quantity (Typical Site) |
|---|---|---|---|
| Mastic sealing tape (50 mm wide) | Wrap with 50% overlap, 2 layers minimum | Fills gaps and voids around connection | 1–2 rolls (10 m each) |
| Self-amalgamating tape (25 mm wide) | Wrap with 50% overlap over mastic, 2 layers | Outer waterproof layer | 2–4 rolls (10 m each) |
| Anti-oxidant compound | Apply thin coat to all copper contact surfaces before assembly | Prevents oxidation at contact interface | 1 tube (150 g) |
| Cable gland sealing compound | Apply to cable entry before tightening gland | Seals cable entry against moisture | As required per gland count |
8.4 Labeling and Documentation
Proper labeling of all lightning protection components is required by IEC 62305-3 and is essential for safe and efficient maintenance. All earth connections must be labeled to prevent accidental disconnection, and all SPDs must be labeled with their type, rating, and installation date. The table below specifies the labeling requirements for a complete installation.
| Label Type | Text / Content | Material | Location |
|---|---|---|---|
| Earth connection warning | "EARTH CONNECTION — DO NOT REMOVE" | Self-adhesive vinyl, UV-resistant | All bonding conductors and earth connections |
| SPD identification label | Type, Uc, In/Iimp, installation date | Self-adhesive polyester | On or adjacent to each SPD |
| MEB identification label | "MAIN EARTHING BAR — BONDING POINT" | Engraved aluminum or UV vinyl | On MEB bar or mounting bracket |
| Cable markers | Circuit ID, conductor size, destination | Clip-on or sleeve type, color-coded | At each end of all bonding conductors |
| Earth test point label | "EARTH TEST POINT — TEST ANNUALLY" | Self-adhesive vinyl | At each earth test clamp location |
